Headquarter EnBW in Stuttgart

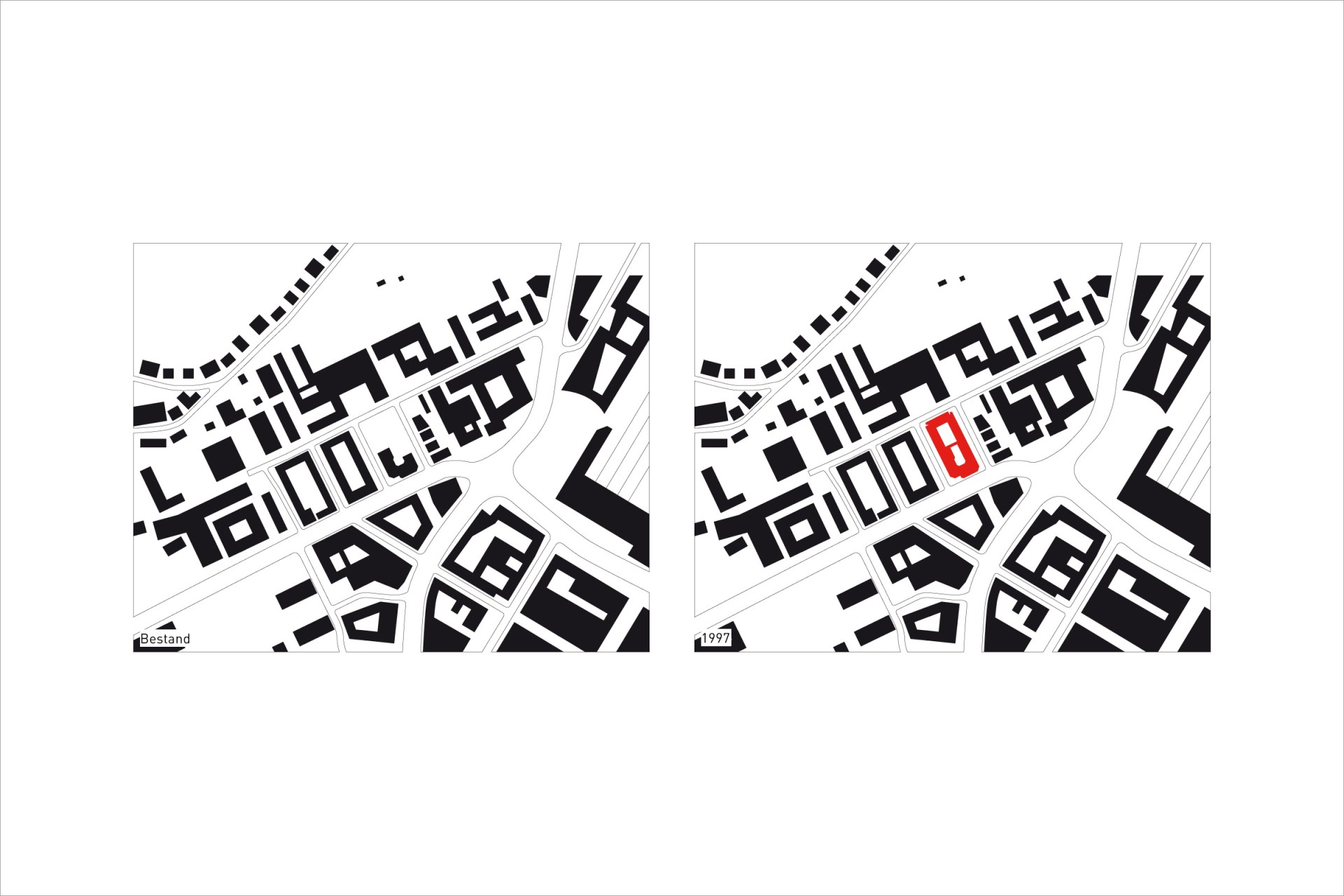

The energy company EVS (today known as EnBW) was looking to expand its headquarters in Stuttgart. This involved a city block, the southern side of which had first been built upon in the 1970s – with a remarkable office building from the architects Kammerer and Belz. It was now a question of complementing this building on the remaining, larger portion of land and combining the two structures into a single entity.

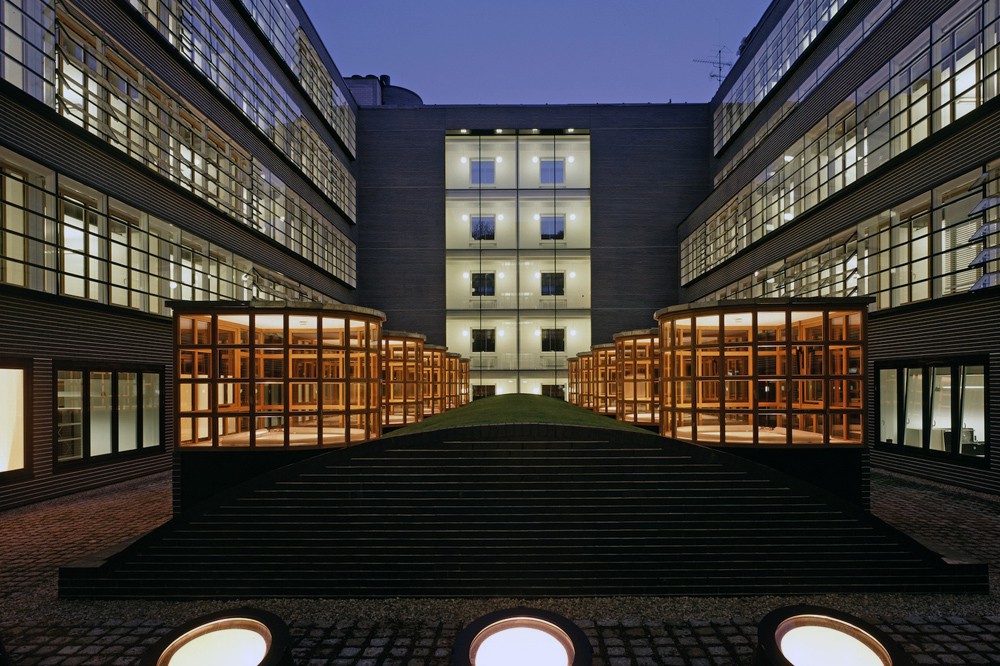

Along the street frontages, the outer edges of the block are closed off by office wings with double-loaded corridors. The entrance hall lies on the northeastern side, connecting directly with the old building and incorporating the depth of the office wings. A transverse connection links new and old, producing two inner courtyards: one is associated with the entrance hall and accessed from the transverse connection; the other accommodates a large staff restaurant.

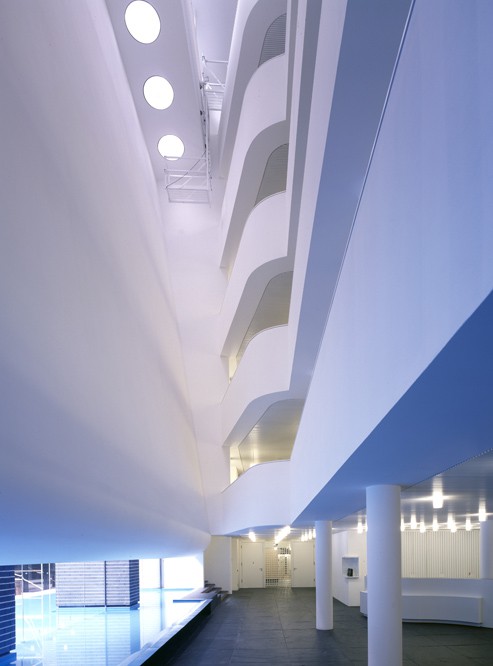

On the ground floor opposite the main entrance, a 1.60-metre-high window aperture stretches across the whole width of the lobby. Lengthways it is paired with a water basin of equal width, connecting the external space with the hall’s interior. Above it rises a wall that inclines increasingly as it ascends and is illuminated by round skylights. Its lower edge is rounded off and reflects the play of light from the blue water basin. The hall is painted white; ever-changing colour accents fall across the interior walls, but these come only from the reflections of the water’s surface.

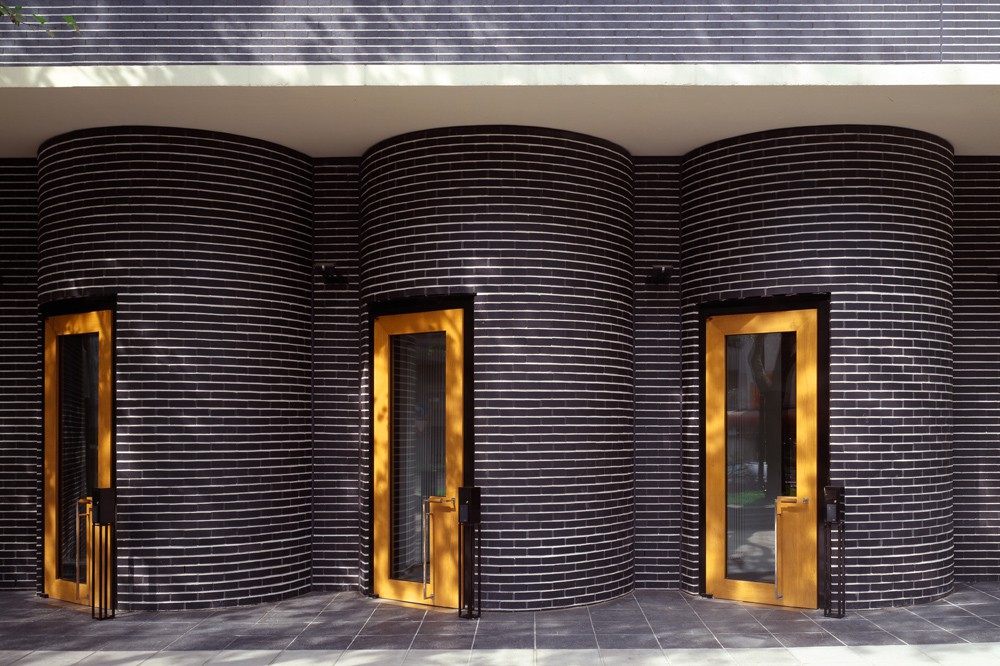

The floor plan of the offices is based on fixed room sizes. In this way, the hallway doors could be arranged in illuminated niches at regular intervals. The walls along the hallway are built of visible masonry for reasons of durability, whereas the transverse dividing walls are of lightweight construction. To gain more storage space, we developed pull-out cabinets.

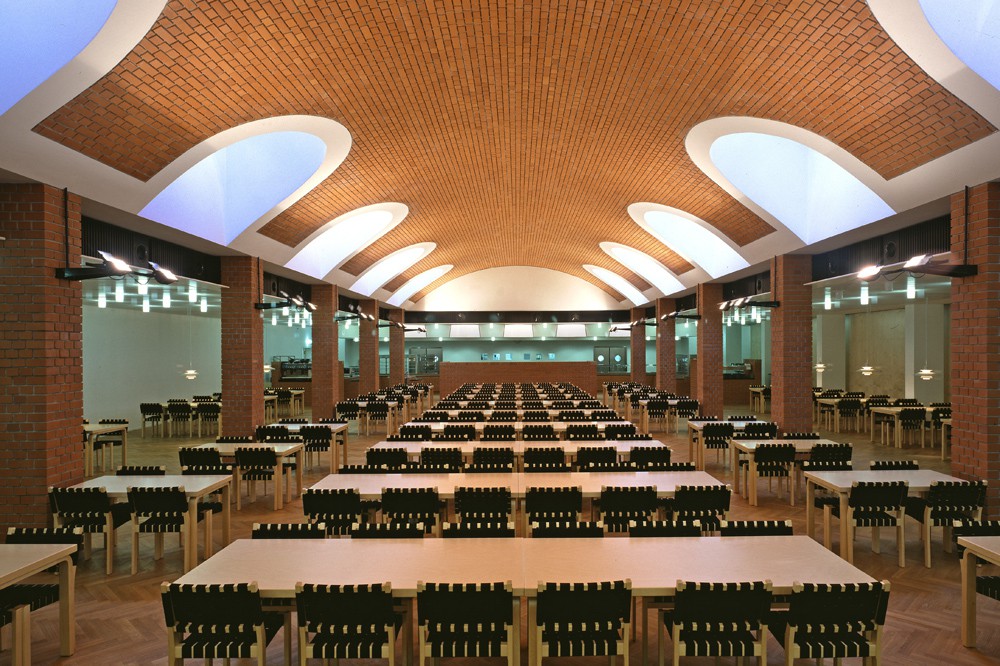

The inner courtyard accommodating the dining room rests on its own structural supports separate from the rest of the building and is visually dominated by a masonry barrel vault spanning 10 metres. The bricks have been left visible from inside and are loaded externally with a layer of concrete. Daylight enters the room via ceiling apertures set along the longer sides. The room is enclosed on three sides: on two sides by the kitchen and ancillary rooms, as well as by additional guest dining rooms beneath the northeastern office wing.

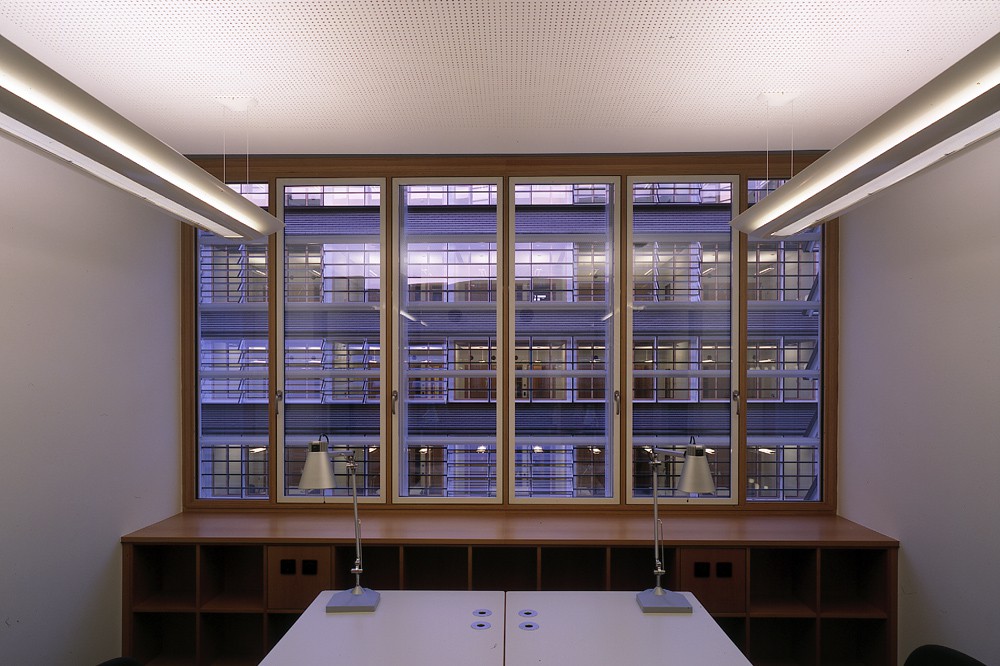

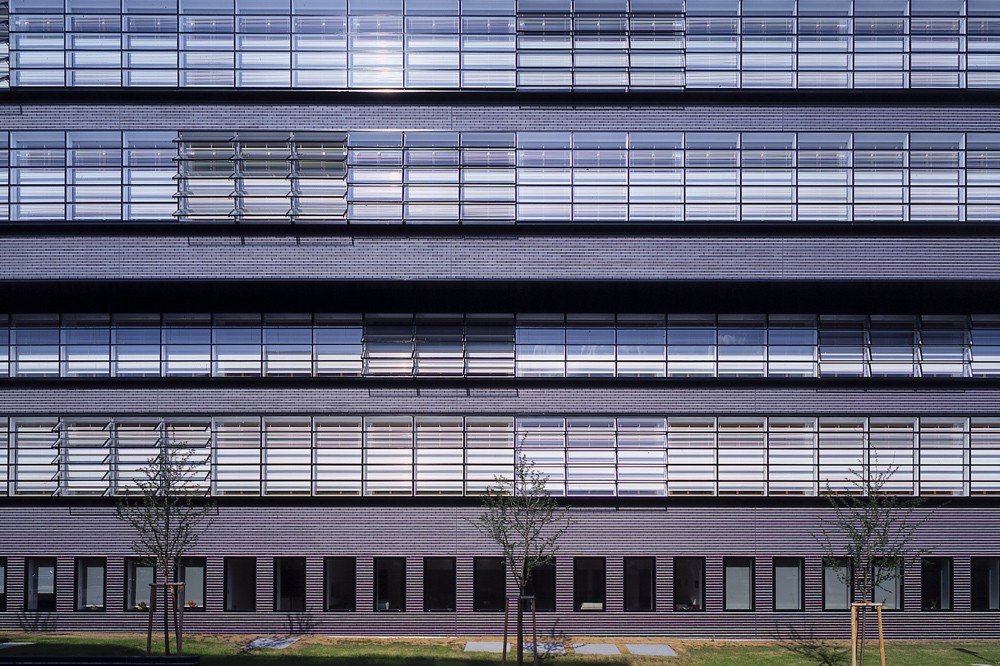

Matters of energy use play a special role for a firm of this sort. That gave us the opportunity to further develop the concept of construction materials with high thermal inertia, together with the associated notion of thermal mass as a storage medium. As with the tax office in Reutlingen, we turned to the concept of the apparently closed-off entrance hall. Accordingly, we reduced the amount of glass in the façade to what was absolutely necessary. The outer sashes of the box-type double windows are fitted with an ingenious opening mechanism that enables adequate ventilation of the rooms. Radiant panels hang from the ceilings and take over cooling and heating. In practice, however, the internal loads on their own are enough to heat the building. The building mass reacts with relative stability to temperature changes.

EVS Energie-Versorgung Schwaben AG (EnBW), Stuttgart

Lederer Ragnarsdóttir Oei, Stuttgart

Marco Garcia-Barth, Alf Hoinkis, Dorothee Strauss, Oliver Cyrus, Boris Miklautsch, Sabine Birk, Alexander Mayer-Steudte, Roland Göppel, Andy Brauneis, Thilo Holzer, Marc Losch

Project Management:
Drees & Sommer, Stuttgart / Berlin

Structural Engineering:
IBA – Acartürk & Partner, Stuttgart

1992 – 1. Preis

Construction period:
1993 – 1997

Kriegsbergstraße 32, 70174 Stuttgart, Germany

Auszeichnung Guter Bauten, BDA 1999

Hugo-Häring-Preis, BDA 2000
